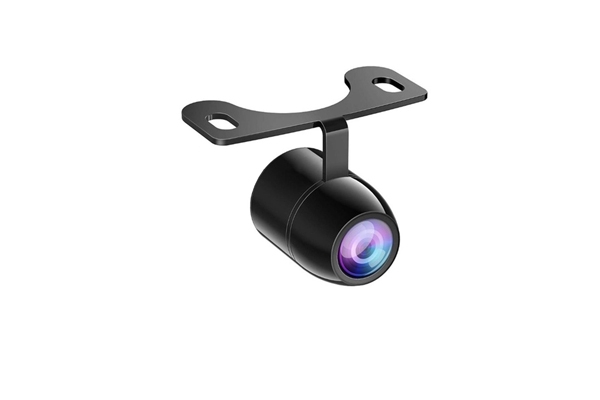

This fully adjustable camera makes it easy to select the viewing angle and/or required target (such as tow bars) compared to fixed angle cameras. The selectable Mirror and Parking grid options also make this a very versatile camera for any application.
Camera Specification
Image Sensor
1/3 inch Colorful CMOS
Resolution(TV line)
600 TV lines
Effective pixels
NTSC/PAL: 728(H) x 488(V)
Viewing angle
Horizontal (130°) ; Vertical ( 110° )
TV System
PAL or NTSC option
Waterproof rating
IP67
Min illumination
0.1 Lux
Electronic Shutter
1-1/10000 seconds
Current consumption
Max.100mA
Video output
1.0vp-p, 75ohm
S/N Ratio
Better than 48db( AGC-OFF)
Power voltage
DC 12 V
Camera connector type
RCA or Mini-Din
Keyhole size
N/A
Operating temperature
-20℃~70℃,RH95% MAX
